Water Treatment Control Panels
Water Treatment Control System
Custom water treatment control panels for RO, UF, filtration, pumps, dosing, wastewater, PLC, HMI, and VFD systems. Built to your process, instrument, enclosure, and documentation needs.
Specifications
- Application
- Custom Industrial Automation
- Control Method
- PLC / Relay Based
- Voltage
- 220V / 380V / 480V Available
- Protection Rating
- IP54 / IP65 Optional
- Communication Protocol
- Modbus / Profinet / Ethernet/IP
- Testing
- FAT Before Shipment
- Customization
- Available

Custom Water Treatment Control Panels for RO, UF, Filtration, Pumping, Dosing, and Wastewater Systems
Uniregal supplies custom water treatment control panels for industrial water treatment systems, RO plants, UF systems, filtration units, pump skids, chemical dosing systems, wastewater treatment equipment, tank level control, and process automation projects.
Each panel can be designed according to your treatment process, pump list, valve sequence, instrument signals, PLC/HMI requirement, VFD control, enclosure environment, communication needs, and project documentation standard.
For buyers, a water treatment control panel is not only an electrical cabinet. It is the part of the system that keeps pumps, valves, tanks, filters, dosing equipment, alarms, and process instruments working together in the correct sequence.

Quick Answer
A water treatment control panel is an electrical control panel used to operate and monitor water treatment equipment.
It may control raw water pumps, high-pressure pumps, dosing pumps, valves, filters, backwash sequences, tank levels, pressure switches, flow meters, pH instruments, conductivity meters, alarms, and communication with SCADA or remote monitoring systems.
The most important question for buyers is whether the panel matches the real treatment process. If the control logic, pump protection, instrument signals, and alarm response are not clear before production, the system may face commissioning problems even when the cabinet wiring looks correct.
Typical Applications
Application | What the Panel Usually Controls |
|---|---|
RO Water Treatment System | Raw water pump, high-pressure pump, flushing valve, pressure protection, TDS/conductivity monitoring |
UF Filtration System | Feed pump, backwash pump, valves, pressure signals, filtration and backwash sequence |
Sand / Carbon Filter System | Filter inlet/outlet valves, backwash valves, flow signals, timer- or pressure-based control |
Chemical Dosing System | Dosing pumps, pH control, ORP control, flow-paced dosing, low chemical alarm |
Wastewater Treatment System | Pumps, blowers, mixers, sludge pumps, level control, alarms |
Pump Station | Duty/standby pumps, level sensors, pressure control, VFD speed control |
Industrial Process Water | Circulation pumps, filtration, dosing, tank level, conductivity monitoring |
Containerized Water Treatment Plant | Complete packaged control panel for pumps, valves, instruments, and operator interface |
Skid-Mounted System | Compact panel integrated with RO, UF, dosing, pump, or filtration skid |
What the Panel Can Include
Component | Function |
|---|---|
Main Disconnect | Isolates incoming power for maintenance |
Circuit Breakers / Fuses | Protects power and control circuits |
Contactors and Overload Relays | Starts and protects pumps, blowers, mixers, and motors |
VFD | Controls pump or blower speed for pressure, flow, or energy-saving operation |
PLC | Runs filtration, flushing, dosing, pump alternation, alarm, and interlock logic |
HMI | Displays system status, alarms, setpoints, manual/auto mode, and process values |
PID Controller | Controls pH, temperature, pressure, or flow when required |
Power Supply | Provides 24VDC or other control voltage |
Terminal Blocks | Connects field instruments, pumps, valves, sensors, and alarms |
Signal Isolator | Conditions analog signals such as 4-20 mA or 0-10 V |
Communication Module | Supports Modbus, Ethernet, remote I/O, SCADA, or project-specific communication |
Indicator Lights / Push Buttons | Supports local operation and status indication |
Labels and Nameplates | Helps installation, operation, and maintenance |
Common Water Treatment Control Panel Types
Panel Type | Suitable For |
|---|---|
RO Control Panel | Reverse osmosis plants, high-pressure pump control, flushing sequence |
UF Control Panel | Ultrafiltration systems, backwash sequence, valve control |
Pump Control Panel | Raw water, transfer, booster, dosing, sludge, and circulation pumps |
Chemical Dosing Control Panel | pH adjustment, chlorine dosing, coagulant dosing, antiscalant dosing |
Filter Control Panel | Sand filter, carbon filter, multimedia filter, backwash automation |
Wastewater Control Panel | Aeration, sludge, dosing, lift station, and treatment process control |
PLC HMI Water Treatment Panel | Automatic control, operator display, alarms, and process visibility |
SCADA Interface Panel | Remote monitoring, data collection, plant-level control integration |
Containerized System Panel | Packaged control panel for containerized water treatment plants |
Retrofit Water Treatment Panel | Replacement of old panels, obsolete PLCs, unclear wiring, damaged components |
Why Water Treatment Panel Specification Matters
Many water treatment problems happen because the control panel was quoted before the process was fully understood.
A panel can be wired neatly but still fail to support the site if the pump protection is incomplete, the tank level logic is unclear, the dosing signal is missing, the RO flushing sequence is wrong, or the operator cannot see the right alarms on the HMI.
For water treatment projects, the panel should be reviewed together with the treatment process. The control logic must match how water enters, passes through pumps and filters, receives chemicals, fills tanks, triggers alarms, and shuts down safely when abnormal conditions appear.
Key Process Functions
Function | Why It Matters |
|---|---|
Pump Start / Stop | Controls raw water, transfer, high-pressure, backwash, dosing, and sludge pumps |
Duty / Standby Pump Logic | Balances pump runtime and improves operational reliability |
Dry Run Protection | Helps protect pumps when water level or suction condition is unsafe |
High / Low Pressure Protection | Protects RO membranes, pumps, filters, and piping |
Tank Level Control | Prevents overflow, dry running, and unstable process operation |
Auto Flushing | Supports RO membrane flushing or filter cleaning sequence |
Backwash Control | Controls filter cleaning based on time, pressure, or sequence requirement |
Chemical Dosing | Controls pH, chlorine, coagulant, antiscalant, or other chemical feed |
Alarm Handling | Helps operators respond to pump fault, high pressure, low level, dosing fault, or instrument abnormality |
Manual / Auto Mode | Allows operators to run equipment safely during commissioning or maintenance |
RO Water Treatment Control Panel
An RO control panel usually needs more than simple pump start and stop.
It may need to control raw water pump operation, high-pressure pump protection, inlet valves, flushing valves, pressure switches, tank level signals, conductivity or TDS monitoring, dosing interlocks, and alarm shutdown.
Typical RO control items include:
RO Function | Control Requirement |
|---|---|
Raw Water Pump | Starts according to system demand and tank level |
High-Pressure Pump | Runs only when pressure, flow, and interlocks are healthy |
Low-Pressure Protection | Stops the system when feed water is insufficient |
High-Pressure Protection | Protects membrane and piping from abnormal pressure |
Auto Flush | Flushes membrane according to time or shutdown sequence |
Product Water Tank Level | Starts or stops system according to storage tank level |
Conductivity / TDS Monitoring | Displays water quality and triggers alarm if required |
Chemical Dosing Interlock | Coordinates antiscalant or pH dosing with flow or pump status |
Chemical Dosing Control Panel
Chemical dosing control needs careful review because wrong dosing logic can affect water quality, chemical cost, and site operation.
A dosing panel may be designed for pH adjustment, chlorine dosing, antiscalant dosing, coagulant dosing, flocculant dosing, or ORP control.
Dosing Item | Example |
|---|---|
Control Method | Manual dosing, timer dosing, flow-paced dosing, PID dosing |
Input Signal | pH, ORP, flow meter, level switch, dry contact |
Output Device | Dosing pump, solenoid valve, alarm output |
Protection | Low chemical tank alarm, dosing pump fault, no-flow interlock |
Display | pH value, setpoint, pump status, alarm message |
Documentation | Wiring diagram, signal list, terminal list, dosing logic description |
Wastewater Treatment Control Panel
Wastewater panels often need to control pumps, blowers, mixers, dosing equipment, sludge systems, and tank level signals.
Unlike a simple pump panel, wastewater control often depends on process timing, level conditions, oxygen demand, interlocks, and alarm management. The panel should be easy for operators to understand because site teams may need to respond quickly to overflow, pump fault, blower fault, or dosing abnormality.
Typical controlled equipment includes the following:
- Lift pumps
- Transfer pumps
- Sludge pumps
- Blowers
- Mixers
- Dosing pumps
- Solenoid valves
- Motorized valves
- Level sensors
- Flow meters
- pH / ORP instruments
- Alarm beacons or remote alarm outputs
PLC, HMI, and SCADA Options
Water treatment systems can be controlled by relay logic, PLC, PLC with HMI, or PLC with SCADA interface, depending on project size and monitoring needs.
Control Level | Suitable For |
|---|---|
Relay Control | Simple pump or dosing control with limited logic |
PLC Control | Automatic sequence, interlocks, alarms, pump alternation, instrument signals |
PLC + HMI | Operator display, setpoints, alarms, manual/auto mode, process status |
PLC + SCADA Interface | Plant-level monitoring, historical data, remote supervision, multiple equipment groups |
Remote I/O | Larger systems with distributed tanks, pumps, or field instruments |
What Should Be Confirmed Before Ordering?
Information Needed | Example |
|---|---|
Treatment Process | RO, UF, filtration, wastewater, dosing, pump station |
System Capacity | m3/h, LPH, GPD, or project flow rate |
Power Supply | 220V, 380V, 400V, 415V, 480V |
Pump List | Raw water pump, high-pressure pump, dosing pump, backwash pump |
Valve List | Solenoid valves, motorized valves, pneumatic valves |
Instrument List | Pressure switch, pressure transmitter, flow meter, level sensor, pH, ORP, conductivity |
Signal Type | Dry contact, 4-20mA, 0-10V, RTD, pulse, communication signal |
Control Sequence | Auto/manual, flushing, backwash, dosing, pump alternation, alarm shutdown |
HMI Requirement | Status display, alarm page, setpoint input, manual control |
Communication | Modbus, Ethernet, remote I/O, SCADA, hardwired signals |
Enclosure Environment | Indoor, outdoor, wet area, corrosive area, containerized system |
Component Brand | Siemens, Schneider, ABB, Omron, Mitsubishi, Allen-Bradley, Delta |
Documentation | Electrical schematic, wiring diagram, I/O list, terminal list, test report |
Design Review Points
Design Point | Why It Matters |
|---|---|
Process Sequence | The panel must follow how water moves through the system |
Pump Protection | Dry run, overload, pressure, and level protection reduce equipment damage |
Instrument Signals | Wrong signal assumptions can delay commissioning |
Valve Timing | RO flushing, filter backwash, and dosing interlocks depend on correct valve logic |
HMI Alarm Design | Operators need clear alarm messages, not only fault lights |
Enclosure Selection | Wet, outdoor, or chemical areas need suitable enclosure protection |
Terminal Layout | Clear field wiring terminals make installation easier |
Spare I/O | Future sensors or alarms may need spare PLC capacity |
Documentation | Drawings and terminal lists reduce site wiring confusion |
Build-to-Print or Custom Design
Uniregal can support both build-to-print and custom-design water treatment control panel projects.
For build-to-print projects, the buyer provides approved electrical drawings, BOM, layout, I/O list, terminal list, and component requirements.
For custom design projects, the buyer provides the treatment process, equipment list, instrument list, control sequence, enclosure requirement, and preferred components. We help organize the panel configuration before production.
Engineering Documents
Available documents may include:
- General arrangement drawing
- Electrical schematic
- Wiring diagram
- I/O list
- Terminal list
- Bill of materials
- Instrument signal list
- PLC hardware configuration
- HMI screen list if required
- Alarm list if required
- Nameplate and label list
- Test report
- Packing list
- Compliance-related documents if required
Panel Testing Before Shipment
Each water treatment control panel can be inspected according to the confirmed drawings and project requirements.
Typical inspection items include the following:
- Component model verification
- Mechanical assembly inspection
- Wiring continuity check
- Terminal and label inspection
- Grounding check
- Control voltage check
- Pump control circuit check
- Valve output check when applicable
- PLC I/O check when applicable
- HMI screen check when applicable
- VFD parameter and basic function check when applicable
- Alarm and interlock check according to agreed logic
- Analog signal wiring check when applicable
- Visual inspection before packing
The purpose of testing is to reduce wrong wiring, missing labels, unclear signals, incorrect component models, and startup problems before the panel reaches the project site.
Retrofit and Replacement Projects
Many water treatment control panel inquiries come from existing systems that are still running but difficult to maintain.
The old panel may contain obsolete PLCs, unclear wiring, damaged relays, missing drawings, unstable dosing control, poor alarm display, or components that are hard to replace locally.
For retrofit projects, you can send old panel photos, component lists, instrument lists, nameplate information, wiring drawings, and a description of the process operation. We can review the available information and suggest a practical replacement or upgrade configuration.
Cost Factors
Water treatment control panel cost depends on more than cabinet size.
The final price is affected by PLC and HMI brand, pump quantity, VFD requirements, valve quantity, analog signal quantity, enclosure material, instrument wiring, documentation, testing scope, and delivery urgency.
A lower panel price may not be the lowest project cost if the control sequence is unclear, the instruments are not defined, or the panel needs modification during commissioning.
FAQ
What is a water treatment control panel?
A water treatment control panel is an electrical control panel used to operate and monitor pumps, valves, filters, dosing systems, RO systems, UF systems, tanks, instruments, alarms, and automation logic in a water treatment system.
What does a water treatment control panel control?
It may control raw water pumps, high-pressure pumps, dosing pumps, backwash pumps, blowers, valves, tank levels, pressure switches, flow meters, pH instruments, conductivity meters, alarms, and PLC/HMI operation.
What is the difference between an RO control panel and a water treatment control panel?
An RO control panel is mainly designed for reverse osmosis systems, including high-pressure pump control, flushing, pressure protection, and water quality monitoring. A water treatment control panel is broader and may include RO, UF, filtration, dosing, pump control, wastewater, and plant-level automation.
Can you build PLC control panels for water treatment systems?
Yes. PLC control panels can be built for RO, UF, filtration, dosing, pump stations, wastewater systems, and containerized water treatment plants.
Can the panel include HMI operation?
Yes. HMI screens can display system status, pump status, valve status, alarms, setpoints, manual/auto mode, conductivity, pH, level, pressure, and other process values.
Can the panel connect to SCADA?
Yes. Depending on the project requirement, the panel can support SCADA or remote monitoring through communication modules, hardwired signals, Ethernet, Modbus, or other project-specific methods.
What information is needed for a quotation?
Please send the treatment process, flow rate, pump list, valve list, instrument list, power supply, control sequence, enclosure environment, PLC/HMI preference, and available drawings or photos.
Can you build a panel for an existing water treatment system?
Yes. For retrofit projects, please send old panel photos, wiring drawings if available, component models, an instrument list, voltage information, and a description of how the system operates.
Do you provide wiring diagrams?
Yes. Wiring diagrams can be provided according to the confirmed order scope. For custom projects, drawings should be reviewed before production to confirm power wiring, control wiring, signal wiring, terminals, and field connections.

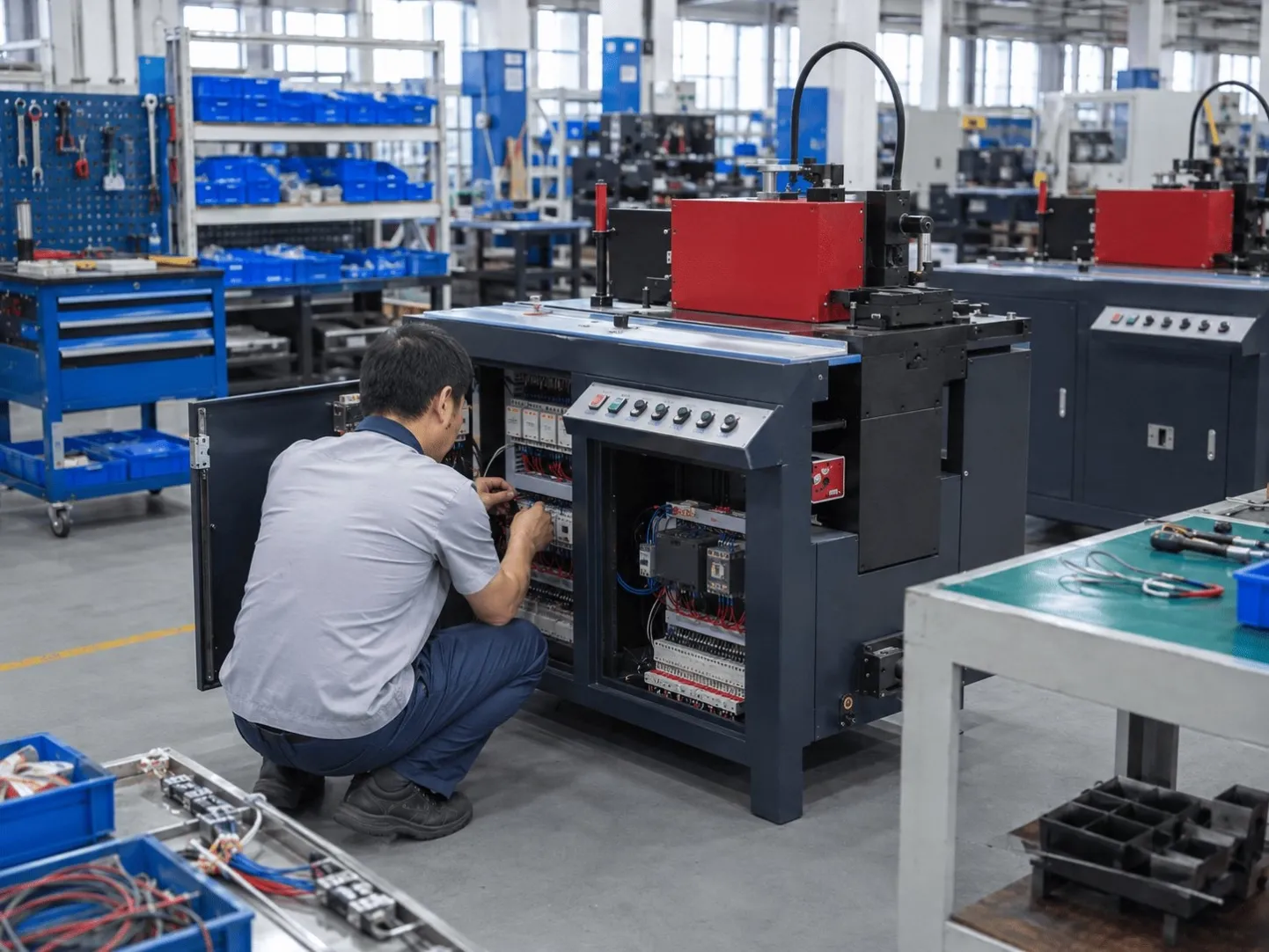

How do you test the panel before shipment?
Testing may include component verification, wiring continuity check, terminal inspection, grounding check, control voltage check, PLC I/O check, HMI check, VFD basic function check, alarm check, interlock check, and visual inspection before packing.
Request a Quotation
Send us your treatment process, pump list, valve list, instrument list, control sequence, voltage, enclosure requirement, PLC/HMI preference, and available drawings or photos.
Our team will review the water treatment control panel configuration before quotation, so you receive a practical proposal based on the real process requirement, not only a cabinet price.
Contact Us
Looking for a reliable water treatment automation partner for your industrial or municipal project?
Contact UniRegal Automation today.
- Email: info@uniregal.com
- WhatsApp: +86-13535080546
- Website: https://www.uniregal.com
