Pump Control Panel Buying Guide: How to Spec a Panel That Survives the Field

Quick Answer

A pump control panel needs a VFD or bypass only when the duty calls for it, an enclosure rated to the site (IP65/NEMA 4X for wet or corrosive duty), and motor protection that covers dry-run and phase loss. The most common field failures come from three mistakes: an enclosure rated for the office instead of the pit, splitting the enclosure, VFD and wiring across three suppliers with no single accountable party, and assuming “UL listed” covers the whole assembly. As a Foshan sourcing partner we bundle enclosure + PLC/HMI/VFD from one shop, run pre-shipment FAT, and ship cabinets in about 15 days (components in 3–5). One quote, one responsible party.

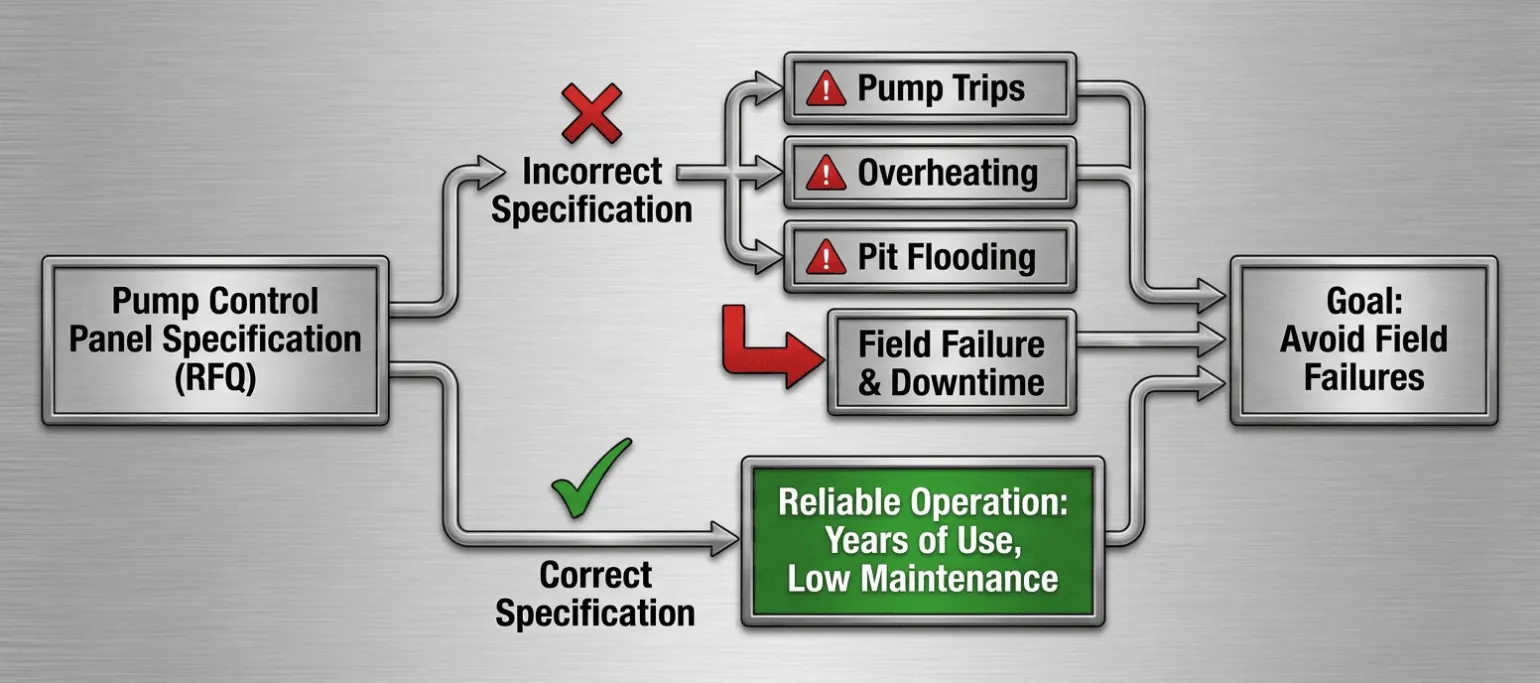

A pump control panel is the brain between your motor and your process. Spec it wrong and the pump trips, overheats, or floods the pit. Spec it right and it runs for years with almost no attention. This guide covers what actually breaks pump panels in the field — and how to write an RFQ that avoids it.

What a pump control panel actually does

It takes the signal from your tank (float switch, pressure transducer, or transmitter) and turns the motor on and off — or varies its speed. Inside: a contactor or VFD, overload protection, a disconnect, and the enclosure that keeps all of it alive in a wet, dirty, or corrosive space.
The enclosure, not the electronics, is usually what fails first. Get the rating wrong and condensation, corrosion, or a hose-down kills the panel long before the components wear out.

VFD, bypass, or full-voltage — pick by duty

  • Full-voltage (across-the-line): cheapest, fine for simple on/off duty with a pressure switch. Hard start, high inrush.
  • Bypass / reduced-voltage: soft start or part-winding — lower inrush, easier on the electrical supply.
  • VFD: speed control from a 4–20 mA or 0–10 V signal. Best when flow needs to track a setpoint (booster, HVAC, process). Costs more but saves energy and cuts water hammer.
Most buyer mistakes happen here: specifying a VFD for a duty that only needs on/off, or skipping a bypass and paying for capacity the application never uses.

Enclosure rating — match the environment, not the habit

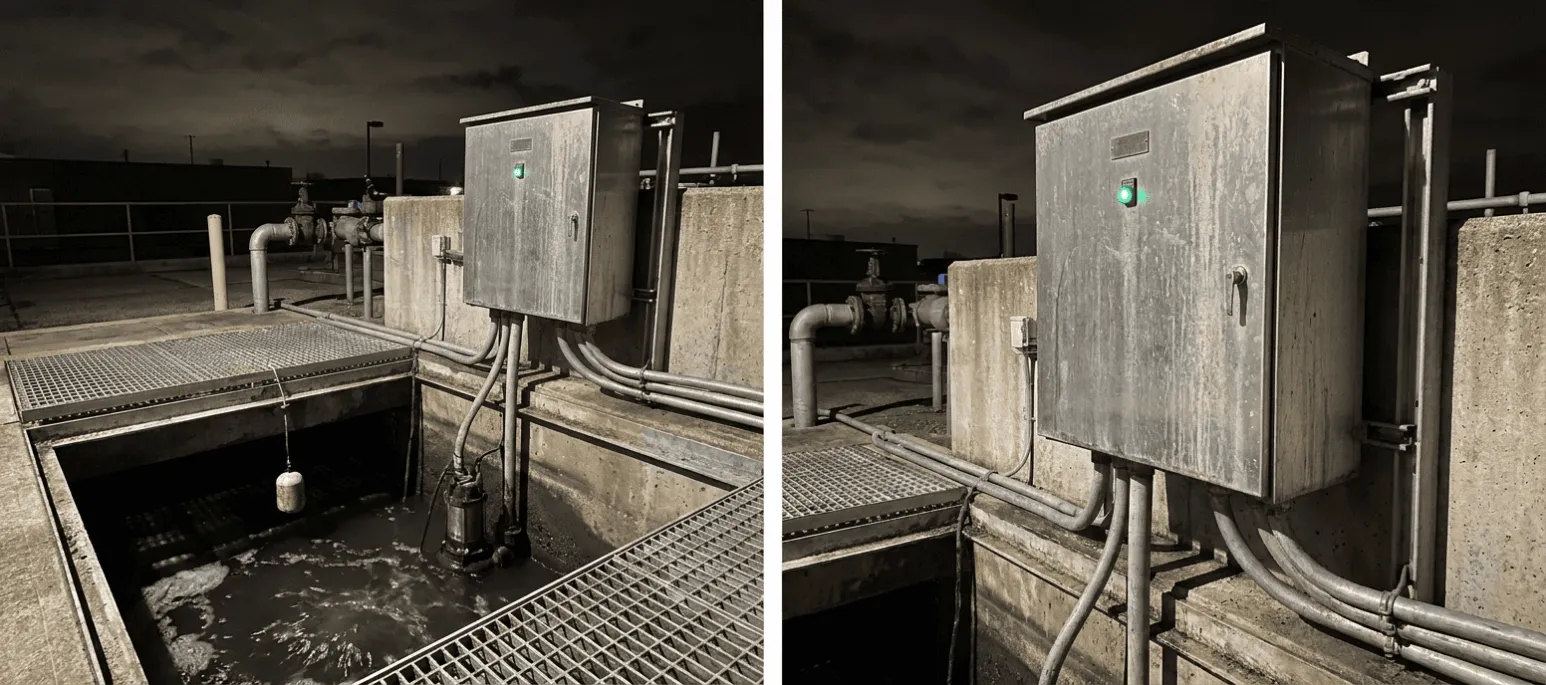

Pump panels live in pits, pump rooms, and outdoor skids. The rating decides whether the panel survives:

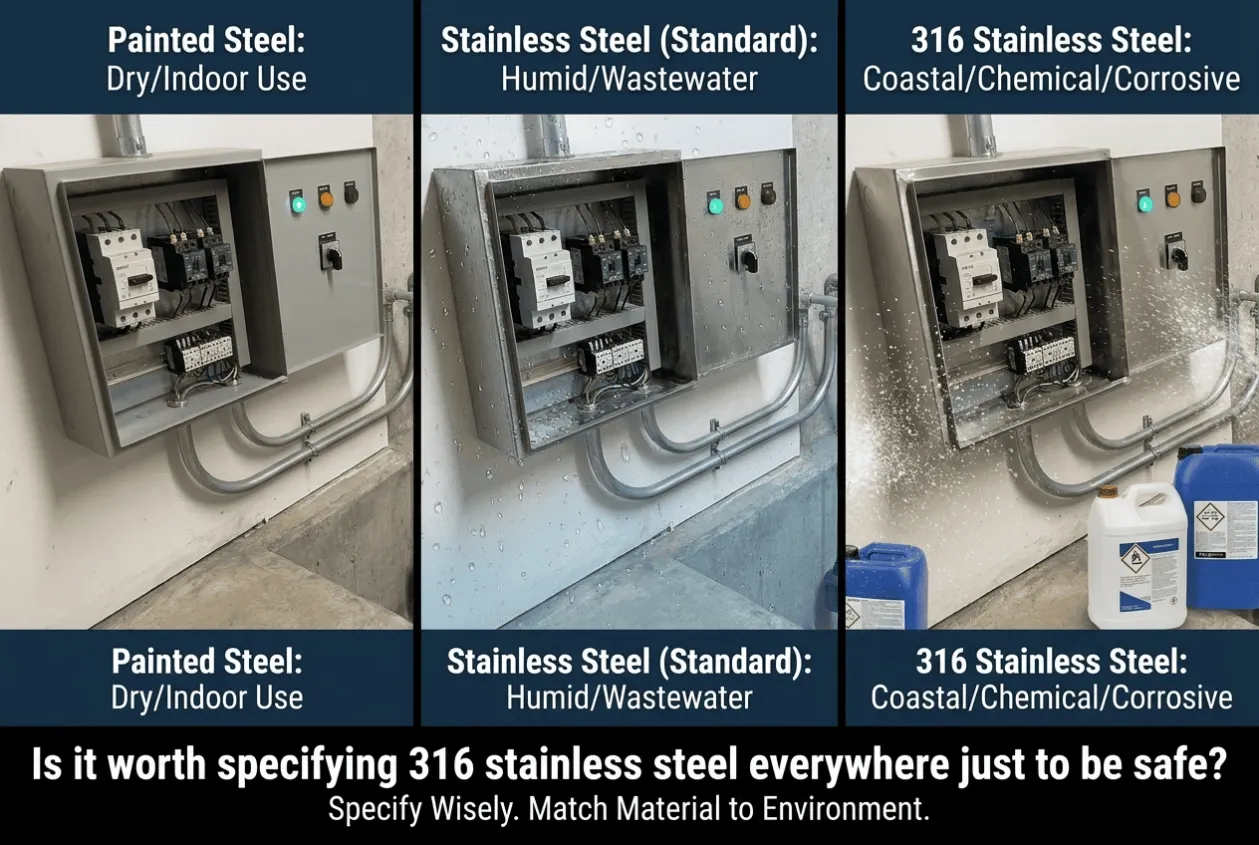

  • IP65 / NEMA 4X for outdoor, washdown, or corrosive sites (wastewater, food, marine)
  • 304 stainless for most washdown; 316 where chloride or fertilizer is present
  • Galvanized carbon steel for dry indoor pump rooms — lowest cost
  • Coated carbon steel as a mid-price washdown option
We source all four through Foshan suppliers: carbon steel, 304/316 stainless, and galvanized, in IP65/NEMA 4X, with UL 508A available on request through vetted UL-listed shops.

Motor protection — don't skip the boring parts

  • Overload relay sized to the motor FLA, not the breaker
  • Short-circuit protection matched to the supply
  • Phase loss / unbalance monitoring for three-phase sites
  • Dry-run protection for booster and borehole pumps — a pump running dry destroys the mechanical seal in minutes

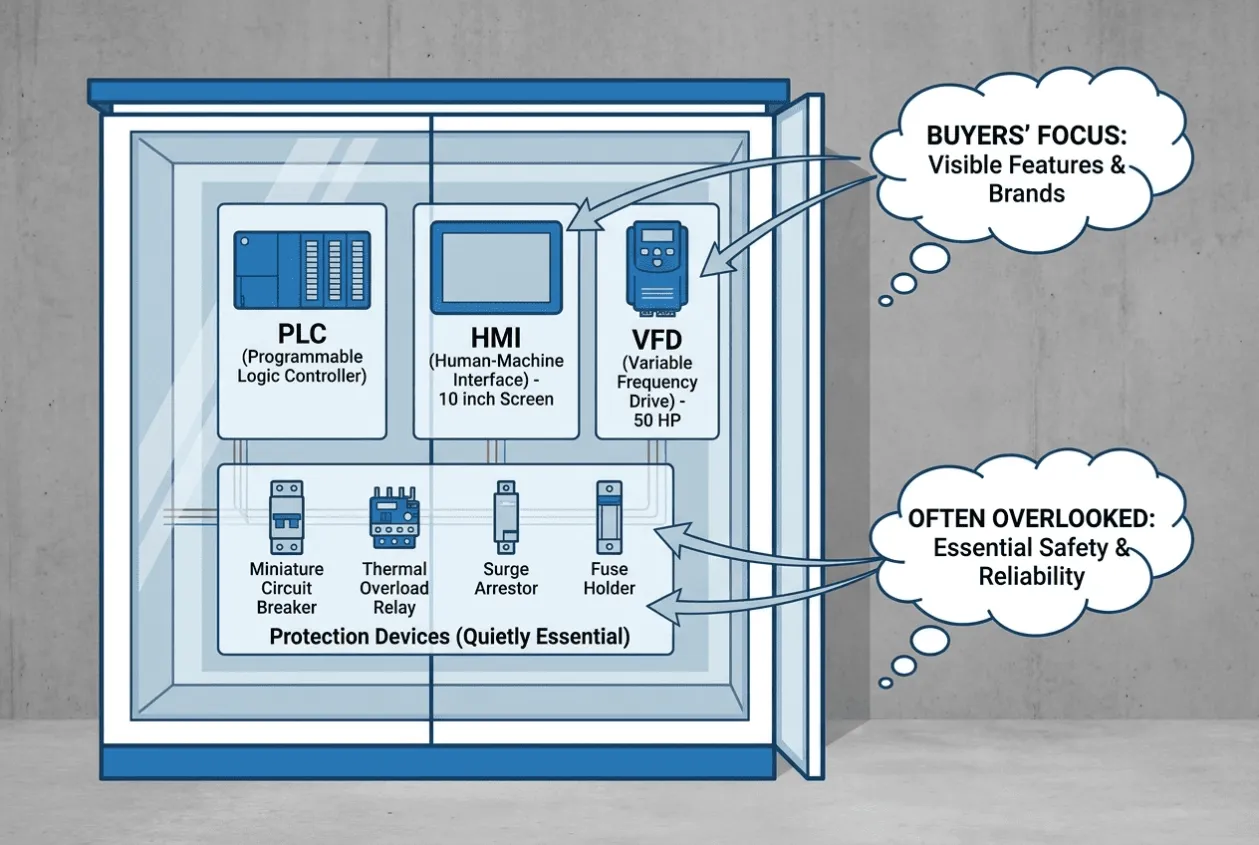

These are cheap to add and expensive to omit. They belong in the RFQ, not as an afterthought.

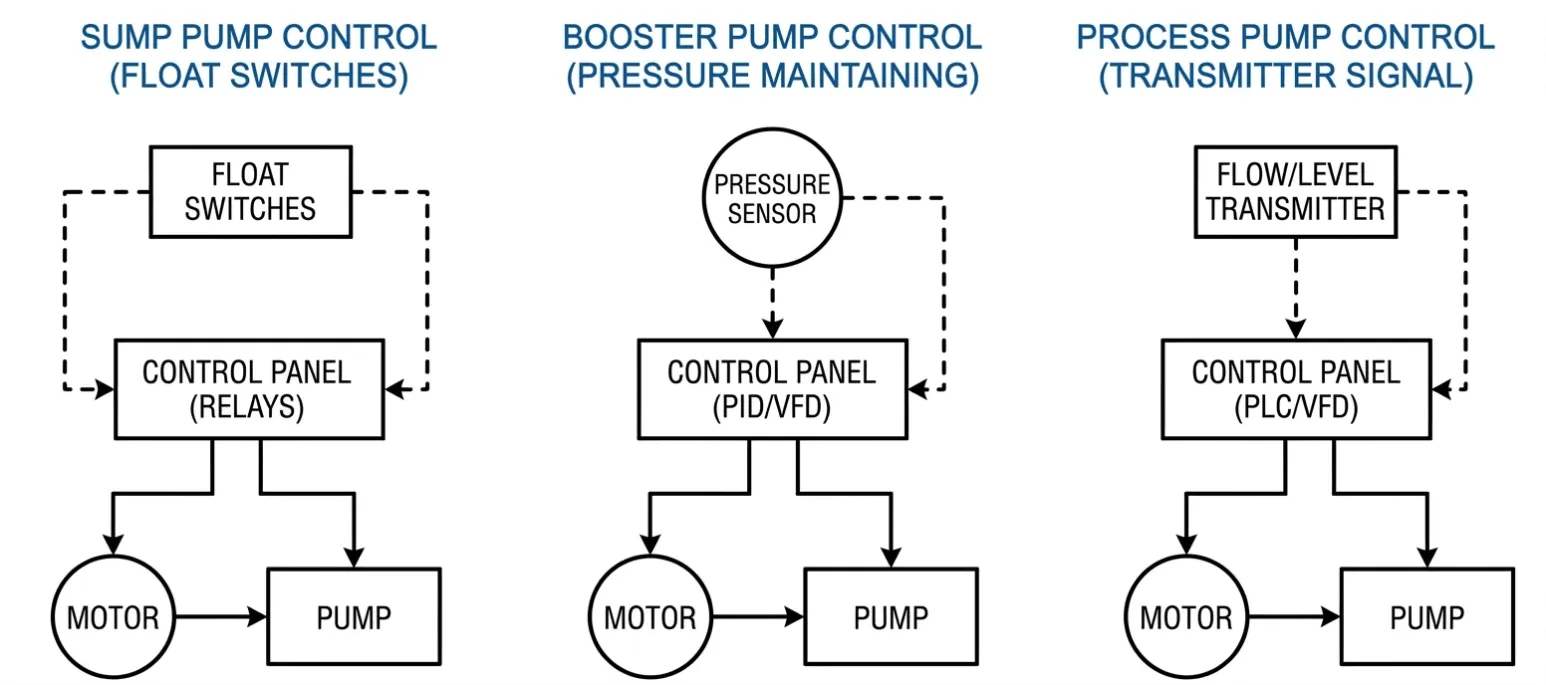

Float switch vs pressure transmitter

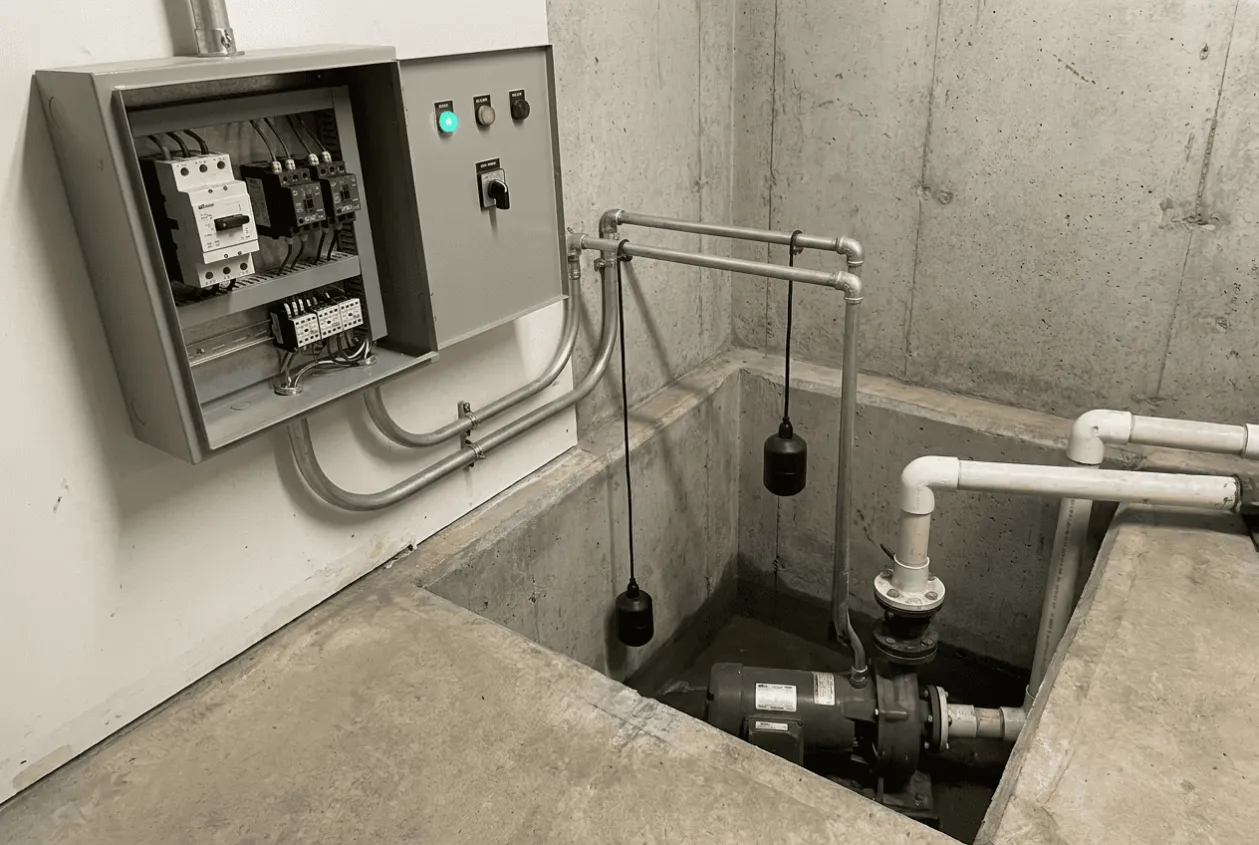

  • Float switch / level switch: simple, robust, cheap. Good for sump and septic duty.
  • Pressure transmitter (4–20 mA): better for variable-speed boosters and where you need a setpoint, not just on/off.
  • Dual float + alarm: the field-standard for wastewater — run + high-level alarm.

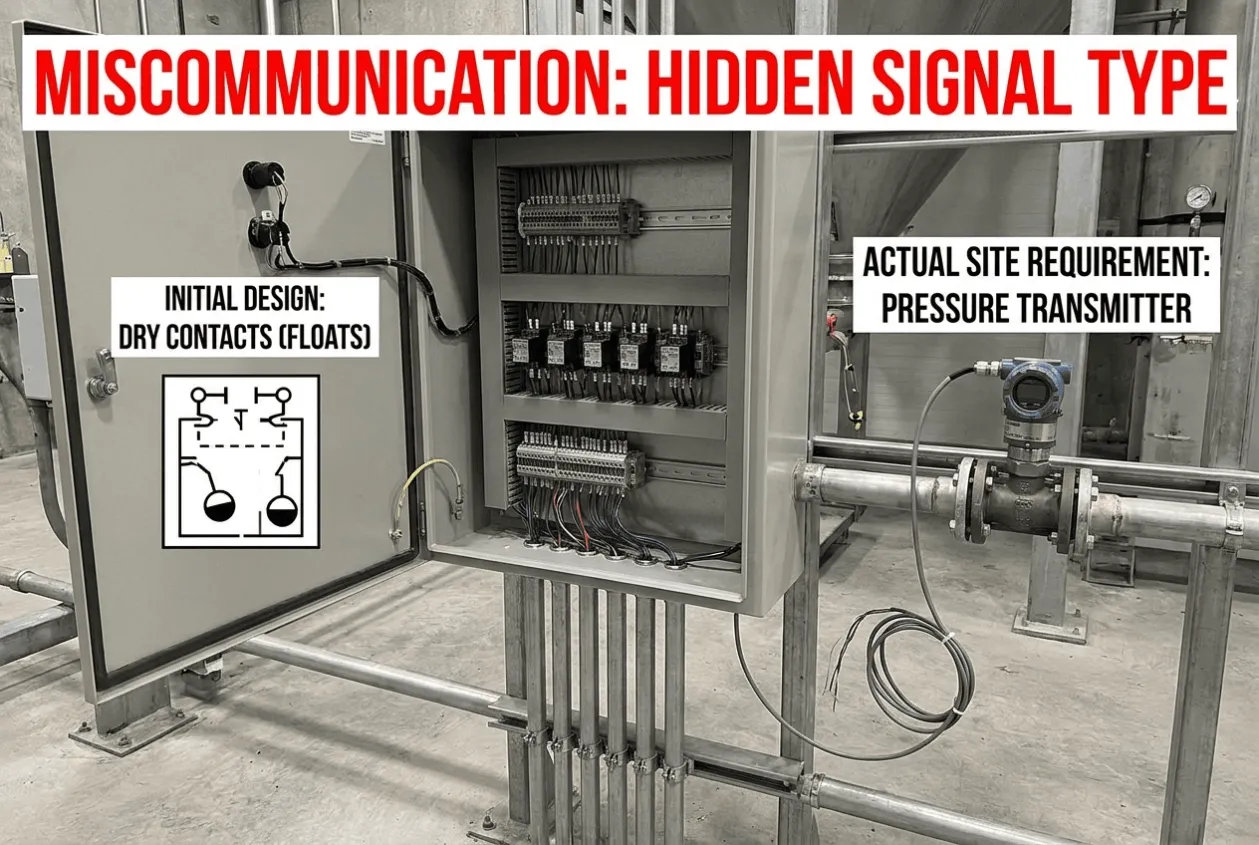

Specify the signal type in the RFQ. A panel built for a float switch cannot read a transmitter without a different input card.

Sourcing pitfalls that cause pump failure

  1. Enclosure rated for the office, not the pit — the #1 cause of early failure.
  1. No single point of accountability — enclosure from one shop, VFD from another, wiring by a third. When it trips, everyone points at everyone else.
  1. "UL listed" assumed to cover the whole assembly — often only the enclosure or only the VFD is listed. Ask what exactly is certified.
  1. Lead time ignored — a custom cabinet quoted at 6 weeks when the pump was due in 2.
As a Foshan sourcing partner, we bundle enclosure + PLC/HMI/VFD from one accountable point, run pre-shipment FAT and wiring checks, and ship cabinets in about 15 days (components in 3–5). One quote, one responsible party.

RFQ checklist — send this with your drawing

  • [ ] Pump duty: on/off, bypass, or VFD speed control?
  • [ ] Signal type: float switch, pressure transmitter, or both?
  • [ ] Enclosure: environment, IP/NEMA rating, material (CS / 304 / 316)
  • [ ] Motor: voltage, phase, FLA, starts per hour
  • [ ] Protections needed: overload, phase loss, dry-run
  • [ ] Certifications: UL 508A? CE? which market?
  • [ ] Quantity and target lead time
Send your single-line diagram and we'll return a comparison quote with the three specs most often missed flagged before you buy.
