Source PLC power supply modules for rack systems, backplanes, and legacy automation. Verify voltage, capacity, connectors, and replacement compatibility.

Specifications

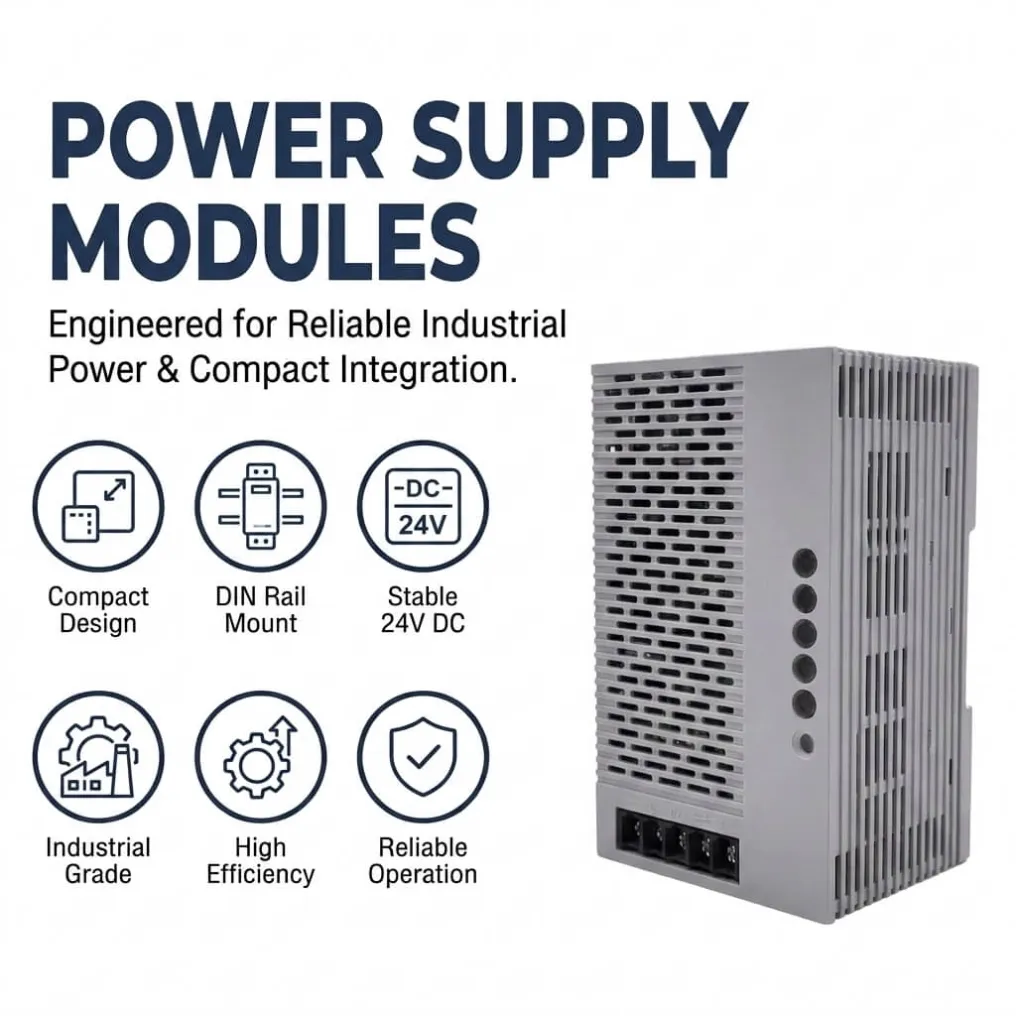

Type: Power Supply Module
Model Number: DVPPS05
Input Voltage: 85-264VAC
Output Voltage: 24VDC
Place of Origin: Taiwan, China

PLC Power Supply Modules for Replacement, Expansion and Legacy Automation Systems

A failed PLC power supply module can stop an entire rack even when the CPU, program and I/O cards are still usable.

UniRegal supplies PLC power supply modules and industrial automation replacements for rack systems, backplanes, internal I/O power, remote I/O stations and legacy control platforms.

We help maintenance teams, OEMs, system integrators and automation distributors verify the correct module before purchase by checking the complete model number, input voltage, output capacity, rack position, terminals, mounting method and compatibility requirements.

[Send a Power Supply Module for Verification]

Is Your Power Supply Module the Actual Problem?

Before ordering a replacement, identify what the system is doing.

The PLC rack is completely dead

Check the incoming voltage, fuse, breaker, wiring and module status indicators before assuming that the power module has failed.

The CPU starts, but the I/O system shows a fault

The PLC power supply may be operating while the backplane, field power or I/O distribution has another problem. A replacement module will not correct a wiring or field-power fault.

The output voltage is lower than expected

Low voltage may be caused by an overloaded module, failing capacitors, poor terminals, excessive cabinet temperature or a short circuit on the DC side.

The original module is discontinued

The correct solution may be an official successor, a compatible replacement, a surplus unit, a refurbished module or a complete platform upgrade. The correct route depends on the PLC family and project risk.

What Does a PLC Power Supply Module Power?

A PLC power supply module commonly provides power to:

CPU or processor module

Backplane or rack bus

Internal I/O modules

Communication modules

Expansion modules

System monitoring circuits

It may not provide power directly to:

Sensors

Solenoid valves

Contactors

Actuators

Transmitters

External switches

Field instruments

Field devices may require a separate 24V DC power supply and distribution circuit. Confirming this distinction prevents a common replacement mistake: changing the PLC module when the actual fault is in the field-power circuit.

Power Supply Module Types We Can Help Source

PLC Rack Power Supply Modules

These modules are designed for modular PLC racks and backplane-based control systems.

Selection depends on:

PLC family

Rack or chassis type

Input voltage

Output capacity

Number of installed modules

Backplane current requirement

Standalone or redundant arrangement

Internal I/O Power Supply Modules

Some modules provide power to internal I/O electronics or a specific communication bus.

The correct model must match the I/O platform and the required bus connection. A module that looks similar may use a different internal pinout or serve a different section of the rack.

24V DC Power Modules

24V DC modules may be used for PLC systems, remote I/O, control circuits and selected field-power applications.

Before replacement, verify:

DC input range

Output voltage

Output current

Polarity

Isolation

Terminal layout

Protection behavior

AC Input Power Supply Modules

Some PLC power modules accept:

120V AC

230V AC

120/230V AC

A defined dual-voltage range

The input selection, terminal labels and internal configuration must match the original module.

Redundant Power Supply Modules

Redundant modules are used when the control system must continue operating after one supply fails.

The design may include:

Two power supply modules

Load-sharing arrangement

Redundancy controller

Separate incoming circuits

Alarm contacts

Hot-swappable replacement

Do not replace a redundant module with a standard standalone unit without checking the complete rack architecture.

Legacy and Discontinued Power Supply Modules

Older PLC systems often remain in service because the machine, process and field wiring are still functional.

For discontinued modules, the available options may include:

Original new unit

New old stock

Surplus stock

Refurbished and tested unit

Official successor

Compatible alternative

Complete rack upgrade

The most suitable option depends on downtime risk, budget, required warranty and the expected remaining service life of the machine.

Power Supply Module Compatibility Check

A correct replacement must match the original module in more than voltage and power.

Checkpoint	What must be verified
PLC platform	CPU, rack, chassis or I/O family
Complete model number	Series, suffix, revision and voltage code
Input type	AC or DC
Input range	120V, 230V, 24V DC or other specified range
Output capacity	Current and power required by the rack
Backplane connection	Bus position, pinout and connector
Mounting	Rack, chassis, DIN rail or panel
Terminals	Location, size, polarity and wiring method
Redundancy	Standalone, parallel or redundant
Condition	New, surplus, refurbished or compatible
Documentation	Datasheet, test report and wiring information

A replacement should satisfy the original system’s form, fit and function. A higher-wattage module is not automatically a safe replacement if the connector, backplane or voltage arrangement is different.

Why a Similar-Looking Module May Still Be Wrong

Two power supply modules may have:

The same housing size

The same number of terminals

The same nominal voltage

Similar LED indicators

They may still differ in:

AC or DC input

Backplane output

Current-sharing function

Internal fuse

Alarm output

Grounding arrangement

Rack compatibility

Firmware or platform support

Redundancy function

This is why the complete part number and a clear nameplate photograph are more useful than a product name such as “24V PLC power supply.”

Troubleshooting Before Replacement

A qualified technician should isolate and make the system safe before testing.

Step 1: Confirm the incoming supply

Measure the voltage at the module input terminals and compare it with the nameplate requirement.

Step 2: Check protection devices

Inspect fuses, circuit breakers, terminal blocks and disconnect switches.

Step 3: Check the status indicators

Record the LED condition, alarm code, rack fault and CPU diagnostic information.

Step 4: Isolate the downstream load

A short circuit or overloaded I/O system can pull down the module output and make a healthy supply appear faulty.

Step 5: Measure the output under load

Compare the measured value with the specified output voltage and allowable tolerance.

Step 6: Check cabinet conditions

Look for heat, dust, loose terminals, corrosion, poor ventilation or signs of capacitor aging.

Step 7: Compare the replacement specification

Before installing another module, confirm input type, output capacity, terminal arrangement, rack compatibility and redundancy requirements.

Replacing the module without checking the load or incoming supply can cause the replacement to fail for the same reason.

Power Supply Module Replacement Options

Replacement route	Suitable when
Original new module	The platform is active and downtime risk is high
New old stock	The original model is discontinued but unused stock is available
Surplus module	The buyer needs a specific legacy part quickly
Refurbished and tested unit	The original part is difficult to source or budget is limited
Official successor	The manufacturer has replaced the original series
Compatible alternative	The original unit is unavailable and the system allows an approved substitute
Platform upgrade	The existing rack is no longer supportable or expansion is required

The quotation should clearly state the condition, testing scope, warranty and expected delivery time.

How to Size a PLC Power Supply Module

For a modular PLC rack, calculate the power requirement from the actual installed modules.

Review:

CPU consumption

I/O module consumption

Communication module consumption

Expansion rack load

Backplane requirement

Startup demand

Temperature derating

Future expansion

Redundant capacity

Field-power separation

A PLC rack with a few digital modules may require a different power module from a rack containing communication cards, analog modules, motion modules and multiple expansion units.

Power Supply Module Price

Power supply module price is affected by:

PLC brand and series

Complete model number

Input voltage

Output rating

Rack or DIN-rail format

Current production status

New or refurbished condition

Testing requirements

Warranty

Stock availability

Quantity

Delivery destination

Required lead time

A quote based only on “24V power module” is not technically complete. The model number and platform determine whether the module can actually be installed.

What UniRegal Provides

UniRegal can help with:

PLC power supply module sourcing

Discontinued automation parts

Rack and backplane power modules

24V DC power modules

AC-input PLC modules

Redundant power supplies

Replacement verification

New, surplus and refurbished options

Model comparison

Datasheet review

Quantity quotations

Delivery and condition confirmation

We do not recommend a replacement based only on a similar product photograph. The model, electrical data and installation arrangement should be checked first.

Information Needed for a Quote

Send the following information whenever available:

Complete model number

PLC or I/O platform

Nameplate photograph

Input voltage

Output voltage and current

Rack or chassis model

Terminal or connector photograph

Fault symptoms

Required quantity

New or refurbished preference

Required delivery time

Destination country

If the original model is discontinued, also provide the machine application and whether an alternative or platform upgrade is acceptable.

[Request a Replacement Verification]

Frequently Asked Questions

1. What is a power supply module in a PLC system?

It is the module that provides power to the PLC CPU, rack, backplane, internal I/O and communication modules. It may not supply external sensors or actuators.

2. How do I know whether my PLC power supply module uses AC or DC input?

Read the input label and terminal markings. AC modules commonly show L/N or L1/L2, while DC modules show positive and negative terminals. The complete model number should also be checked.

3. Can I replace a 24V DC module with a higher-current module?

Only after confirming the PLC platform, connector, backplane, mounting and electrical compatibility. Higher current alone does not make a module suitable.

4. Why does the PLC CPU work while the I/O modules show a fault?

The CPU power module may be operating while the I/O field power, backplane connection, communication bus or downstream wiring has a problem.

5. Can you supply discontinued power supply modules?

UniRegal can check original new stock, surplus, refurbished, successor and compatible replacement options for legacy PLC systems.

6. What is the difference between a PLC power module and a DIN-rail power supply?

A PLC power module is usually platform-specific and connects to a rack or backplane. A DIN-rail power supply is generally a standalone cabinet-mounted supply used for control or field circuits.

7. What should I send before ordering a replacement?

Send the complete model number, nameplate photograph, PLC platform, input voltage, rack information, terminal photograph and required quantity.

8. How is the condition of a refurbished module verified?

The quotation should state the inspection scope, functional test, visual condition, warranty and any limitations. The buyer should confirm these points before purchase.

Request a Power Supply Module

If a PLC rack has stopped, a legacy module is no longer available, or you are unsure whether a replacement is compatible, send UniRegal the original model number and nameplate photograph.

We will review the platform, electrical data, connection method and supply condition before confirming the available option.
